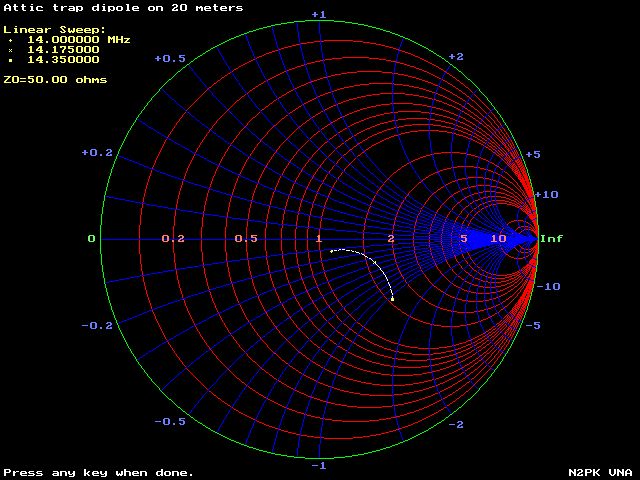

This is a Smith Chart of my antenna on 20 meters, as plotted by a VNA reflection test program. As you might guess, I spend most of my operating time on this band at its lower end.

Attic Dipole Smith Chart
